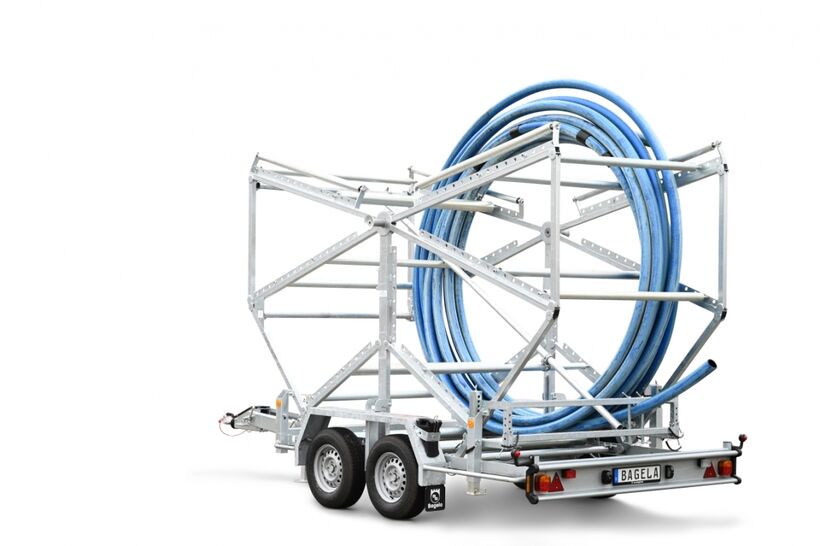

BRVT 17
![](assets/images/7/038.7001.00_BRVT%2017-02e1fe8a.jpg)
- Lateral movable limit bar for limitation of different pipe coil width
- The quick roller change system shortens the changeover time for 60 % and lowers the danger of accidents which is imminent by two handed screwing.
- Depending on the bid loading width coil dimensions of up to 180 mm can be loaded.
- It enables the transport of HDPE-tubing drums too.
- Simultaneous uncoiling of three pipe coils is possible (pipe dia. 100 mm, pipe coil length:100 m
![BRVT 17 Pipe coil transport, uncoiling trailer, while uncoiling](assets/images/0/R6_S18_B1-d079314b.jpg)
Attention: The inner end of the pipe is to be cut. It has to be flush to the pipe coil!
Uncoiling cages can be used also without trailer as freestanding device. Tool trailer are suitable likewise, however a safe attachment must be ensured.The Bagela cable drum trailer of the series BKT 23 and 27 is equipped with the necessary attachment for the Uncoiling cage and are able to load and unload it independently.In addition, the Uncoiling can be used in a cable drum trailer of strange brand.
Specifications are subjects to change without notice
![](files/produktfotos/transportanhaenger/008.343.Anhänger.png)
With the solutions shown here, the danger of the pipe coil endings being slammed around is greatly reduced. Since 2018, four accidents with reeled PE-HD pipes have occurred at BG BAU member companies, one of which was fatal. In order to initiate the market penetration of this safety system when uncoiling PE-HD pipe coils from the pipe coil transport trailer, BG BAU has included both systems in its occupational safety premiums.
![](files/produktfotos/transportanhaenger/008.343.00.jpg)
This adapter is hooked into the uncoiling cage from Bagela. Only the serial number of the uncoiling cage must be transmitted.
Order No. for standard uncoiling cage 008.343.00
Order No. for swide uncoiling cage 008.343.01 (for BRVT 17)
![](files/produktfotos/transportanhaenger/004.789.00.jpg)
Separation fixing without quick release coupling Order No. 004.780.00
Mounting bracket MS 01 for mini excavator Order No. 004.789.01
Mounting bracket MS 03 for mini excavator Order No. 004.789.00
