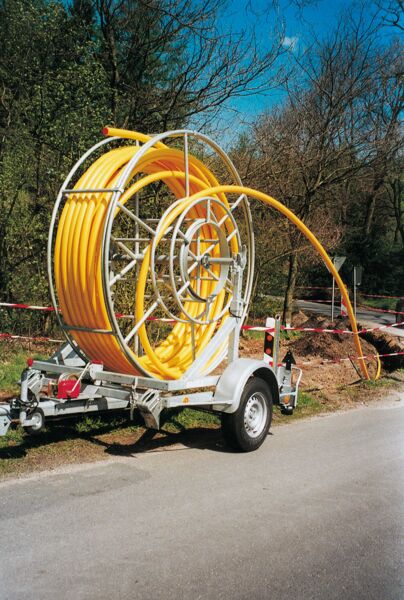

BKT 10K up to BKT 15K with manual rope winch
The loading frame is tilted up width a non-recoiling, handoperated windlass and secured by two eccentric claps. Upon request, all trailers may be delivered with extensible loading jibs for picking up tube reels, for the BKT 10K it is serially.
This series of trailers is equipped with overrunning brake and finished by hot galvanizing.
Technical data:
Type
Pay
load
kg
Empty
Weight
kg
Total
Weight
kg
Max.
drum Ø
mm
Loading
Width
mm
Tongue
Length
mm
Width
mm
Height
mm
Order No.
BKT 10K
950
350
1300
2600
1360
straight
3450
2140
1750
008.015.00
BKT 12K
1200
400
1600
2500
1580
straight
3780
2340
1980
008.016.00
BKT 15K
1500
500
2300
2500
1580
straight
3740
2344
2000
008.017.00
BKT 10K
950
400
1300
2600
1360
height adj.
4030
2140
1750
008.015.01
BKT 12K
1200
450
1600
2500
1580
height adj.
4290
2340
1980
008.016.01
BKT 15K
1500
600
2350
2500
1580
height adj.
4350
2344
2000
008.017.01
