Manhol cover lifter, barrier guards and tapes

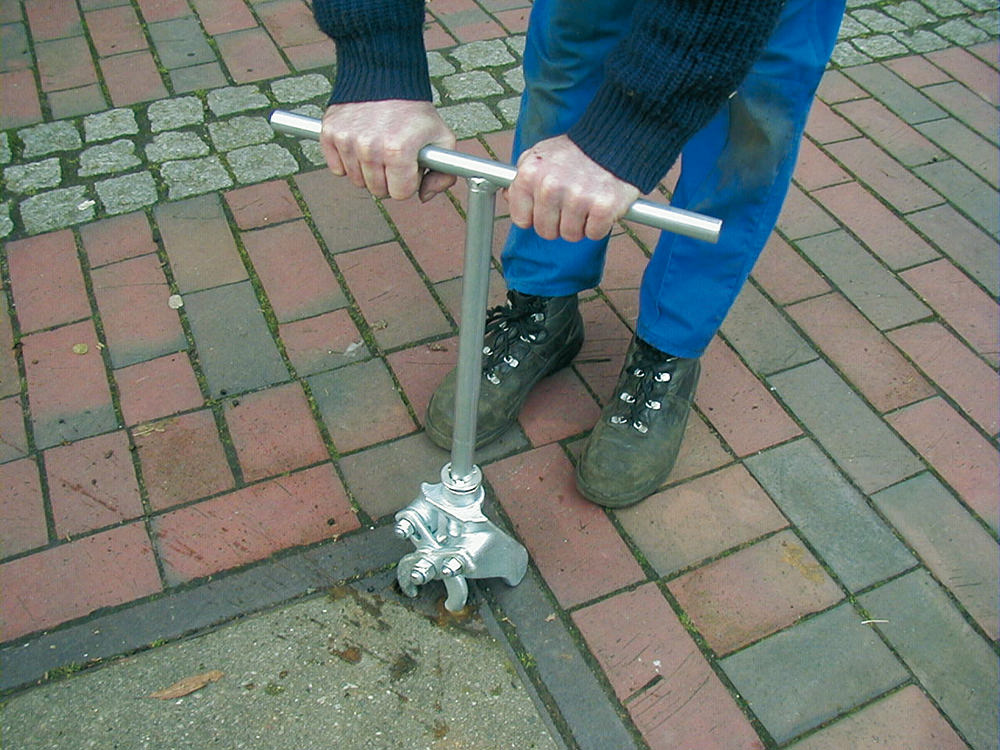

Manhole cover lifting tongs with triangular handle
galvanized
Weight
Order No.
1,3 kg
009.539.00
Manhole cover lifting tongs
galvanized
Weight
Order No.
5,5 kg
009.536.00

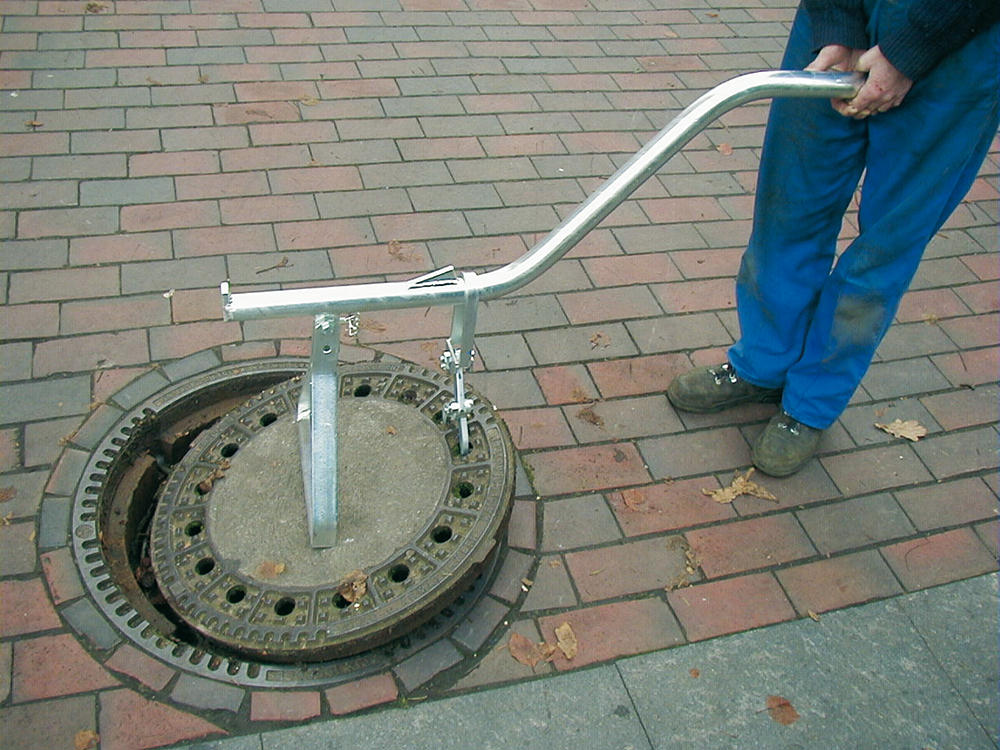

Manhole cover lifting tongs with triangular support
galvanized
Weight
Order No.
11,0 kg
009.537.00

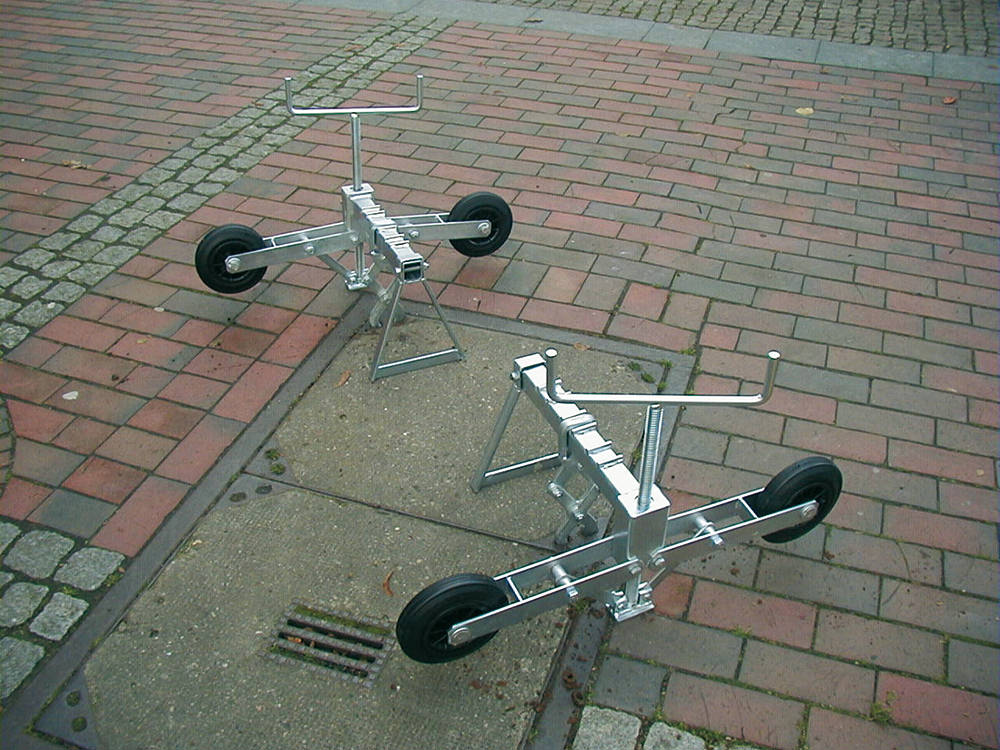

Universal manhole-cover lifter
Ensures quick and easy lifting of triangular, square or round manhole covers. Depending on the tpye of cover, the lifting grips are hooked into the appropriate holes in the cover, the jack is turned down until the load is relieved from the wheels and the grips hold the cover securely.
The jack is then turned up, which will losen the cover and lift it until the wheels touch the ground and the jack is free. Now the cover may be pushed away.
The universal lifter has to be used pairwise!
Technical Data: (in transport position)
Length
Width
Height
Weight
Lifting Height
Order No.
500 mm
500 mm
700 mm
17 kg
200 mm
009.538.00
Folding guards
consisting of 4 elements
Length
Width
Height
Weight
Order No.
1000 mm
1000 mm
800 mm
25 kg
009.659.00

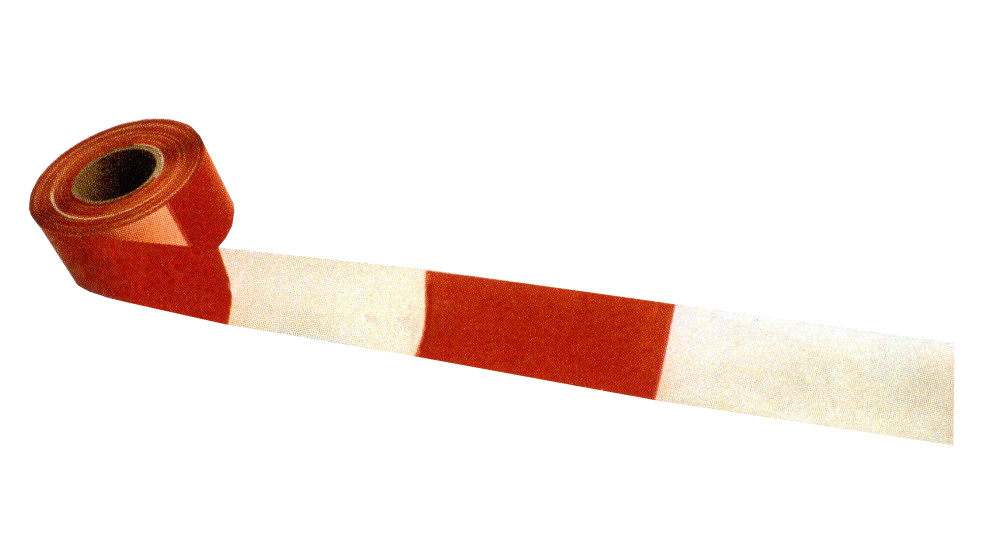

Barrier tape, made of PVC
with red-white section lines, extremely resistant
Width
Length
Weight
Order No.
80 mm
500 m/roller
1,3 kg
009.669.00
Cable line warning strip, made of PVC
non-aging, temperature resistant, colour-fast, wiping-fast
Other prints upon request
Width
Length
Weight
Standard colour
Order No.
40 mm
250 m /roller
0,9 kg
yellow
009.670.00
Uncoiling device for cable line warning strips
for strip width 40 mm
Weight
Order No.
0,7 kg
009.668.00
